Hydraulic 650 Ton Crawler Crane 84m Boom SCC6500 Tracked Mobile Lifting for Infrastructure Development

Name: Hydraulic 650 Ton Crawler Crane 84m Boom SCC6500 Tracked Mobile Lifting for Infrastructure Development
Brand: SANY
Price: 200 USD

Buy cheap Hydraulic 650 Ton Crawler Crane 84m Boom SCC6500 Tracked Mobile Lifting for Infrastructure Development product

Brand Name : SANY

Model Number : SCC6500

Place of Origin : China

MOQ : One Crane

Price : 200,000-6,000,000 RMB per unit

Payment Terms : L/C,T/T

Supply Ability : Supply According to Customer Needs

Delivery Time : According to Order Confirmation

Packaging Details : Packing According to Customer Requirements

Contact Now

650T Hydraulic Crawler Crane With Boom 24m～84m Length Oil And Gas Industry

650T Crawler Crane Is The Perfect Solution For Oil And Gas Industry

SCC6500 Crawler Crane Technical Specifications

Main performance parameters

Performance Indicators	Unit	Parameter
Max rated lifting capacity	t	650(6m Working radius)
Max rated lifting capacity (with super lift)	t	642(7m Working radius)
Max rated lifting moment	t •m	4024
Max rated lifting moment (with super lift)	t •m	7905
Main boom length	m	24～84
Main boom length (with super lift)	m	36～108
Hybrid boom length	m	66～102
Hybrid main boom length (with superlift)	m	90～138
Luffing jib length	m	24～84
Length of luffing jib (with superlift)	m	24～96
Fixed short jib length	m	12～36
Heavy duty fixed short jib length	m	12
Longest arm combination (LJDB condition)	m	96+96/108+60
Main boom luffing angle	°	30～85
Jib luffing angle	°	15～75
Max rope speed of main reel single rope (outermost working layer)	m/min	110
Max rope speed of auxiliary reel single rope (outermost working layer)	m/min	105
Max rope speed of main luffing single rope (outermost working layer)	m/min	48×2
Max rope speed of auxiliary luffing single rope (outermost working layer)	m/min	105
Max rope speed of super lifting and luffing single rope (outermost working layer)	m/min	120
Slewing speed (no load)	r/min	0.6,1.2(Second gear)
Traveling speed	km/h	0～1.0(High speed)～0.55(Low speed)
Gradeability (with basic boom, cab facing rearward)	%	15
Rated engine output	kW/r/min	400/2000
Machine weight (basic boom, 190t mainframe counterweight, 80t central weight, with 650t hook)	t	520
Average ground contact pressure of crawler tracks (basic boom, 180t main machine counterweight, 80t central counterweight, with 650t hook)	MPa	0.15
Main machine rear weight	t	190
Super lifting weight	t	310
Central weight	t	80
Max single piece transport dimensions (length x width x height)	mm	12270×3380×3400
Max single piece transport weight	t	70

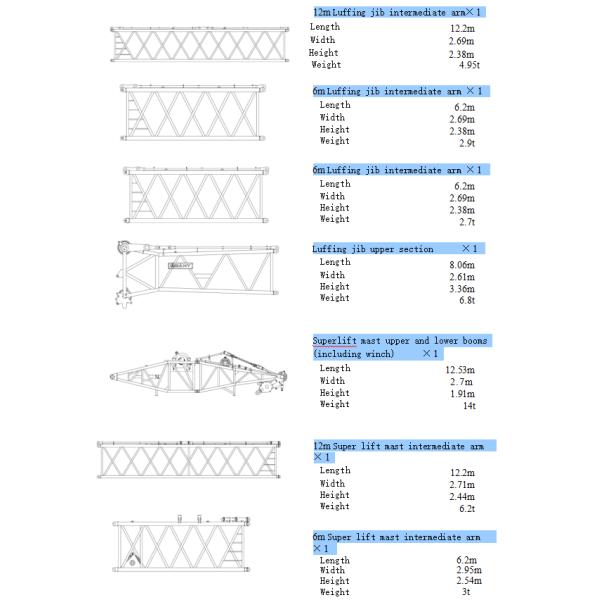

Transport dimensions
